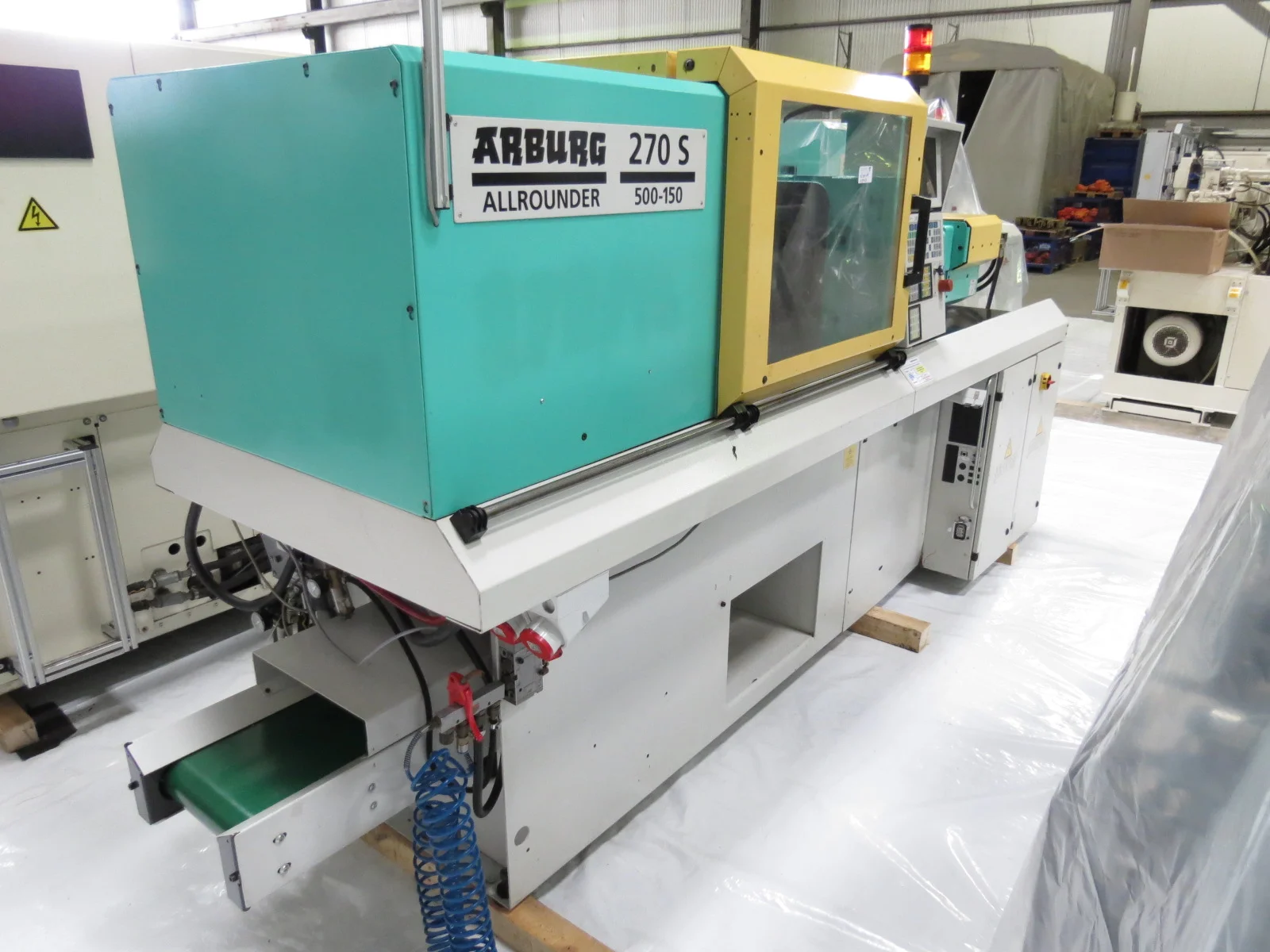

archivedARBURG A 270 S 500-150 SELOGICA
Art.-Nr.: 3510 · €9,900.00
Manufacturer: ARBURG A 270 S 500-150 SELOGICA
Machine number: 172937
Manufacture year: 1998
Operating hours: 65,535 Stunden
Screw: 25 mm
Injection pressure: 2500 bar
Stroke volume: 54 cm³
Clamping Force: 50 t
Tie bar distance: 270 x 270 mm
Mould installation height min.: 225 mm
Plate distance max.: 575 mm
Dimensions: 3700 x 1200 x 2000 mm
Eeight: 2250 kg
Connected load: 15 + 6,3 = 21,3 kW
Förderband, Selektiereinheit, Luftventil, HHG Schnittstelle...
