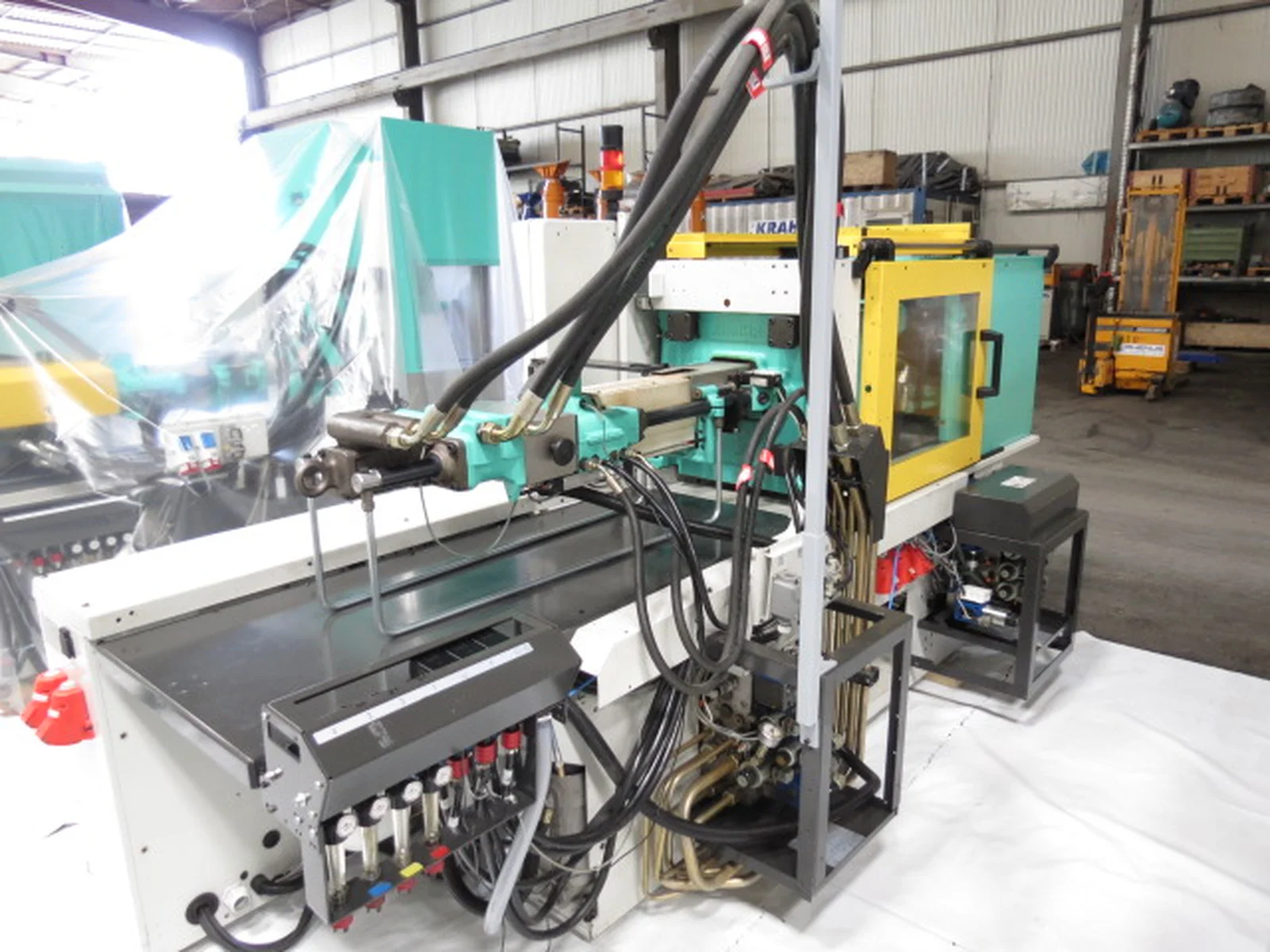

archivedARBURG A 320 C 600-100 (Option Parting-Line)
Art.-Nr.: 3583 · €15,500.00
Manufacturer: ARBURG A 320 C 600-100 (Vorrichtung Trennebene)
Machine number: 199851
Manufacture year: 2006
Operating hours: 27,624 Stunden
Screw: Hoch Verschl.Fest 20 mm
Injection pressure: 2500 bar
Stroke volume: 31 cm³
Clamping Force: 60 t
Tie bar distance: 320 x 320 mm
Mould installation height min.: 200 mm
Plate distance max.: 550 mm
Dimensions: 3500 x 1500 x 2000 mm
Eeight: 2080 kg
Connected load: 15 + 4,9 = 19,9 kW
Vorrichtung Trennebene, Schnittstelle Robot
