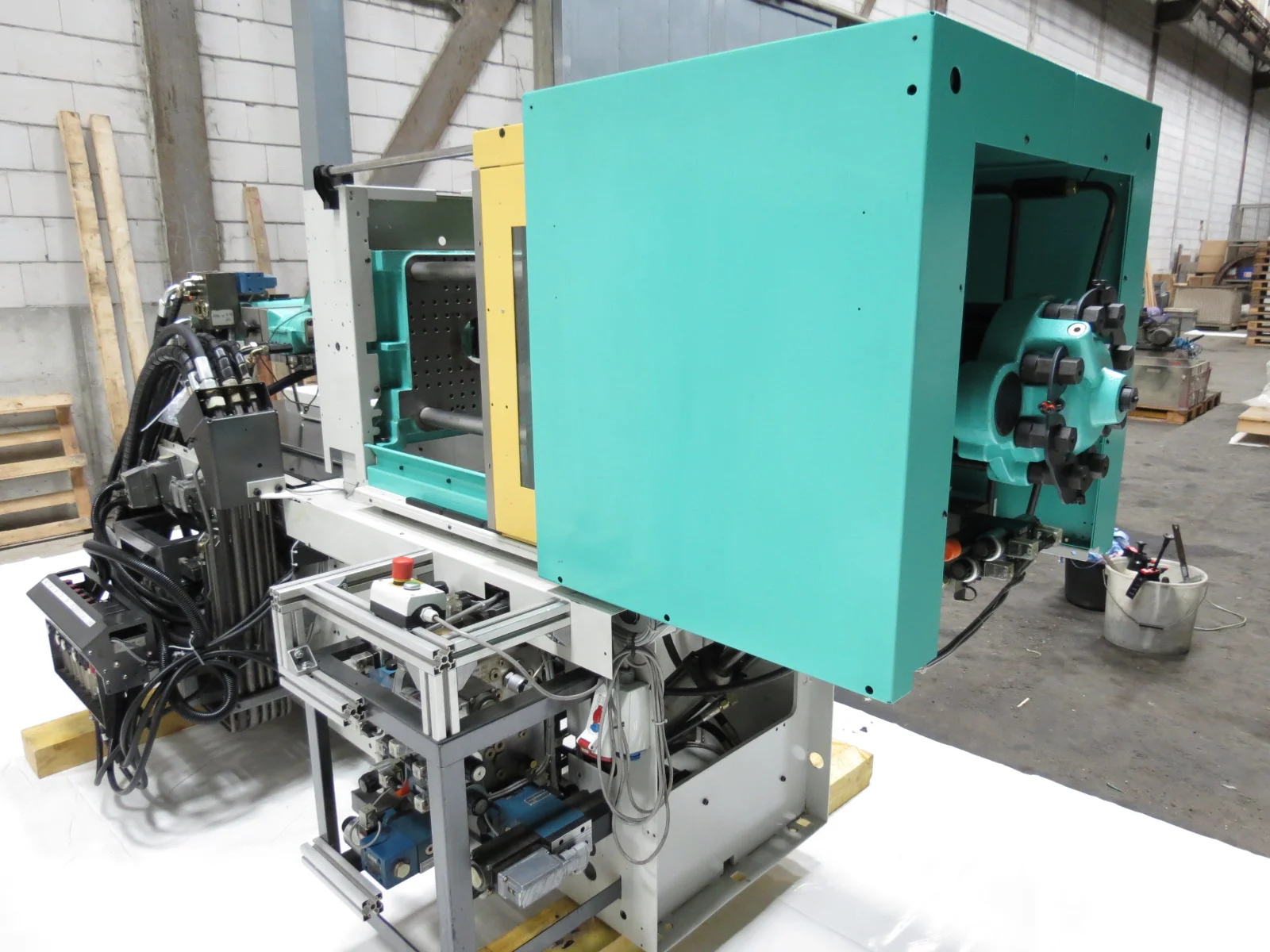

archivedARBURG A 320 C 600-100 U-Version !
Art.-Nr.: 3469 · €19,500.00
Manufacturer: ARBURG A 320 C 600-100 U-Version !
Machine number: 185410
Manufacture year: 2001
Operating hours: 65,535 Stunden
Screw: 20 mm
Injection pressure: 2500 bar
Stroke volume: 31 cm³
Clamping Force: 60 t
Tie bar distance: 320 x 320 mm
Mould installation height min.: 200 mm
Plate distance max.: 550 mm
Dimensions: 3600 x 1700 x 1700 mm
Eeight: 2080 kg
Connected load: 15 + 4,9 = 19,9 kW
U-Version, HHG Schnittstelle, Luftventil, automatische Tür etc...
