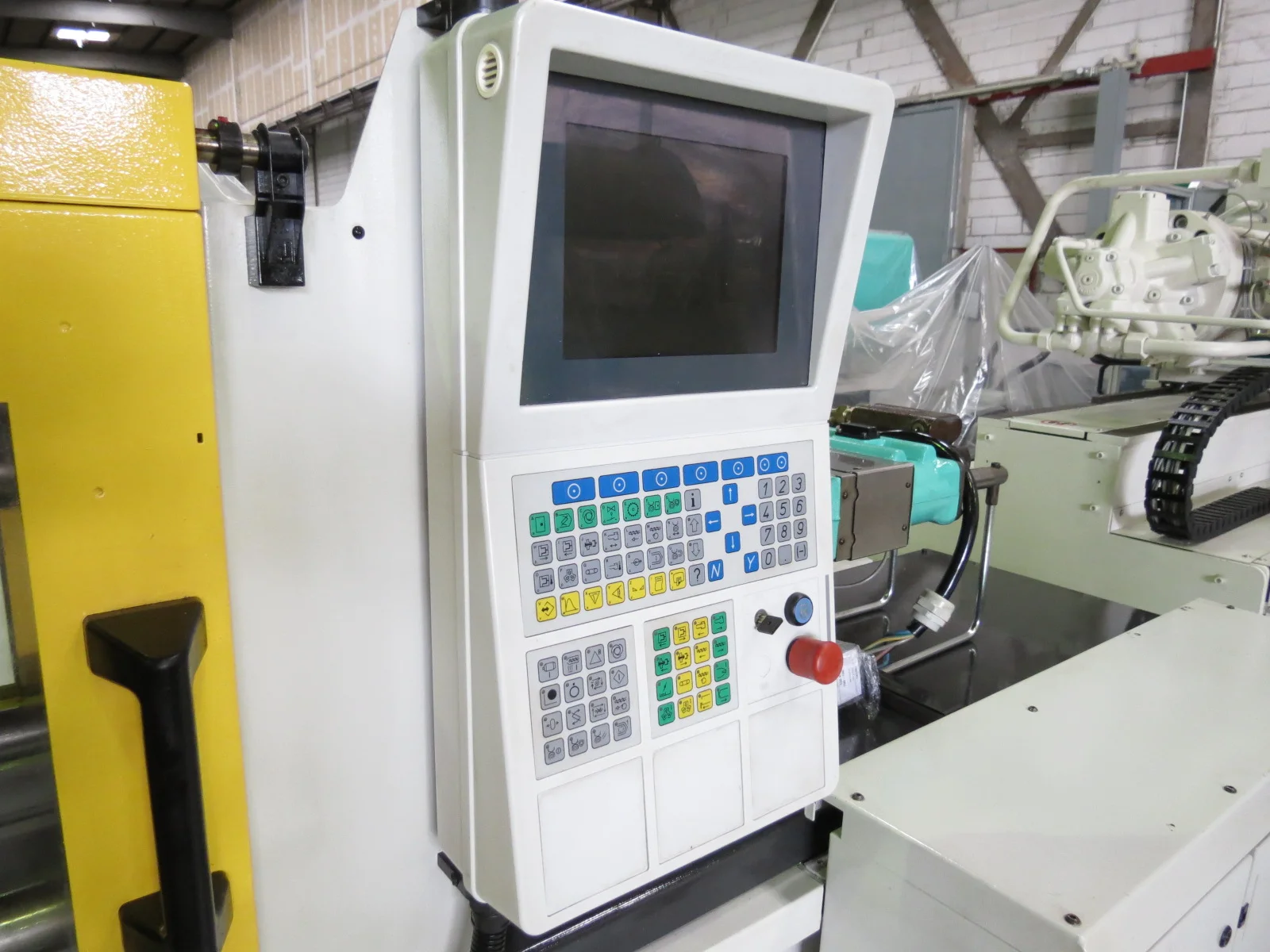

archivedARBURG A 320 K 700-100 SELOGICA
Art.-Nr.: 3512 · €15,800.00
Manufacturer: ARBURG A 320 K 700-100 SELOGICA
Machine number: 193567
Manufacture year: 2004
Operating hours: 40,000 Stunden
Screw: 25 mm
Injection pressure: 2240 bar
Stroke volume: 49 cm³
Clamping Force: 70 t
Tie bar distance: 320 x 320 mm
Mould installation height min.: 200 mm
Plate distance max.: 680 mm
Dimensions: 3200 x 1400 x 1900 mm
Eeight: 2350 kg
Connected load: 11 + 4,9 = 15,9 kW
Lufventil
