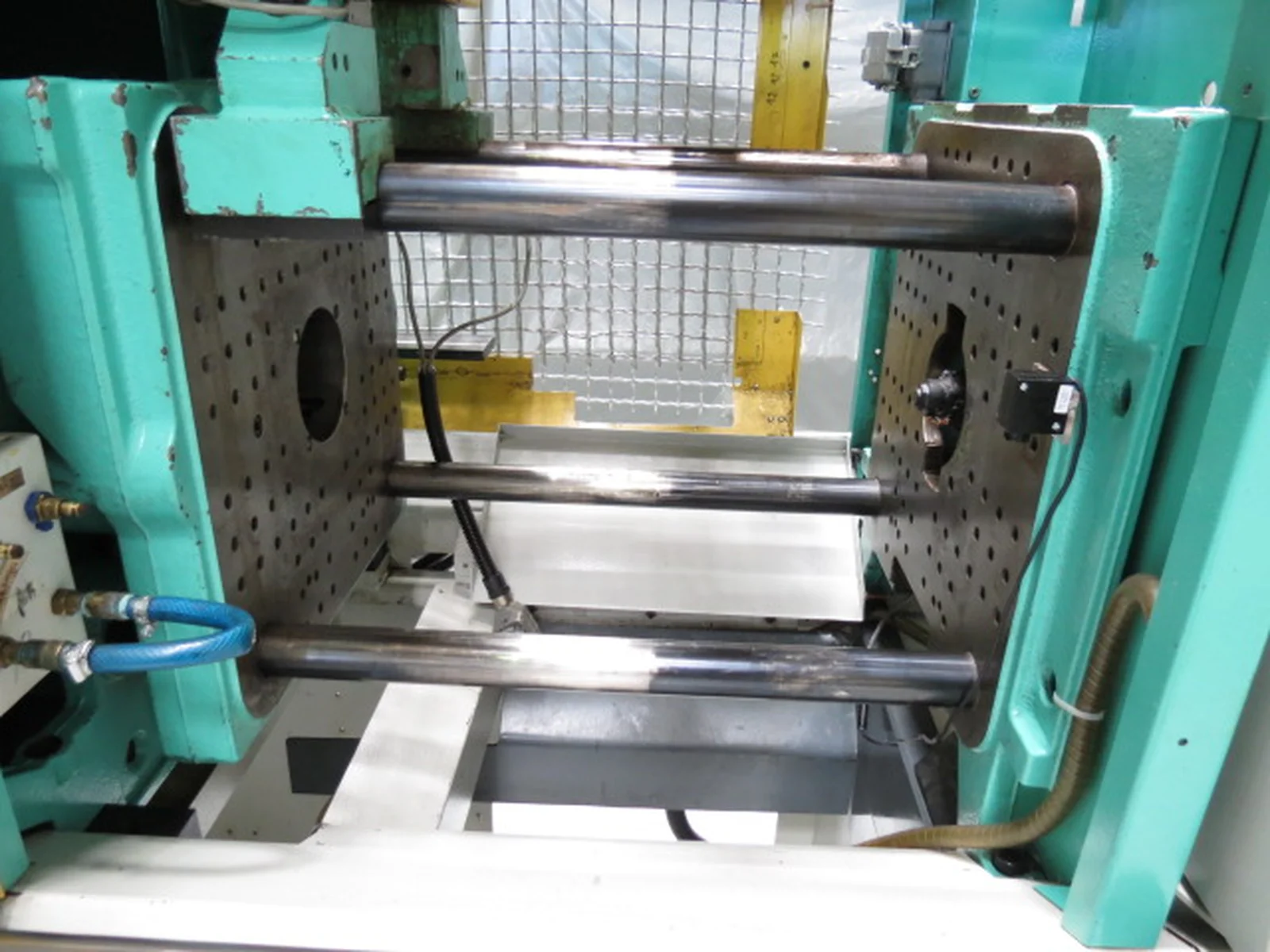

archivedARBURG A 320 S 500-150 (Option parting-line)
Art.-Nr.: 3549 · €7,800.00
Manufacturer: ARBURG A 320 S 500-150 (Trennebene)
Machine number: 172938
Manufacture year: 1998
Operating hours: 65,535 Stunden
Screw: Hoch Verschl.Fest 25 mm
Injection pressure: 2500 bar
Stroke volume: 54 cm³
Clamping Force: 50 t
Tie bar distance: 320x 320 mm
Mould installation height min.: 225 mm
Plate distance max.: 575 mm
Dimensions: 3900 x 1400 x 2000 mm
Eeight: 2250 kg
Connected load: 15 + 6,3 = 21,3 kW
Vorrichtung zum spritzen in die Trennebene (vertikal), Integralpicker, HHG Schnittstelle
