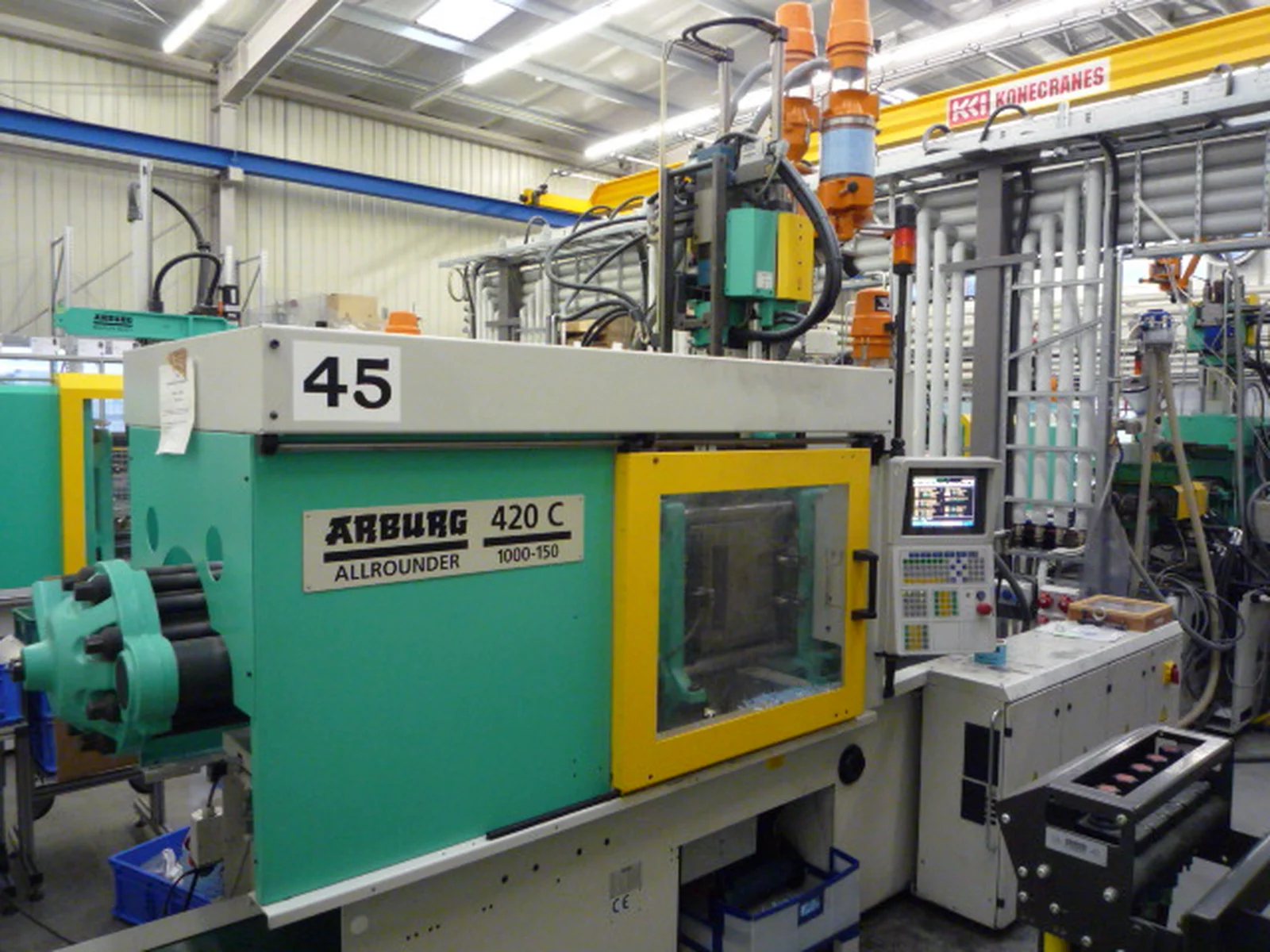

archivedARBURG A 420 C 1000-150/60 2K incl. index unit
Art.-Nr.: 3391 · €29,500.00
Manufacturer: ARBURG A 420 C 1000-150/60 2K incl. Drehteller
Machine number: 188544
Manufacture year: 2002
Operating hours: 65,535 Stunden
Screw: Verschl.Arm 25 + 18 mm
Injection pressure: 2500 + 2500 bar
Stroke volume: 54 + 20 cm³
Clamping Force: 100 t
Tie bar distance: 420 x 420 mm
Mould installation height min.: 250 mm
Plate distance max.: 750 mm
Dimensions: 4300 x 1700 x 2700 (2200 transport) mm
Eeight: 3.800 kg
Connected load: 22 + 9,4 + 3,2 = 34,5 kW
Drehteller für 2 K Anwendung
QS Weiche
Werkzeugheizung 6 Fach
