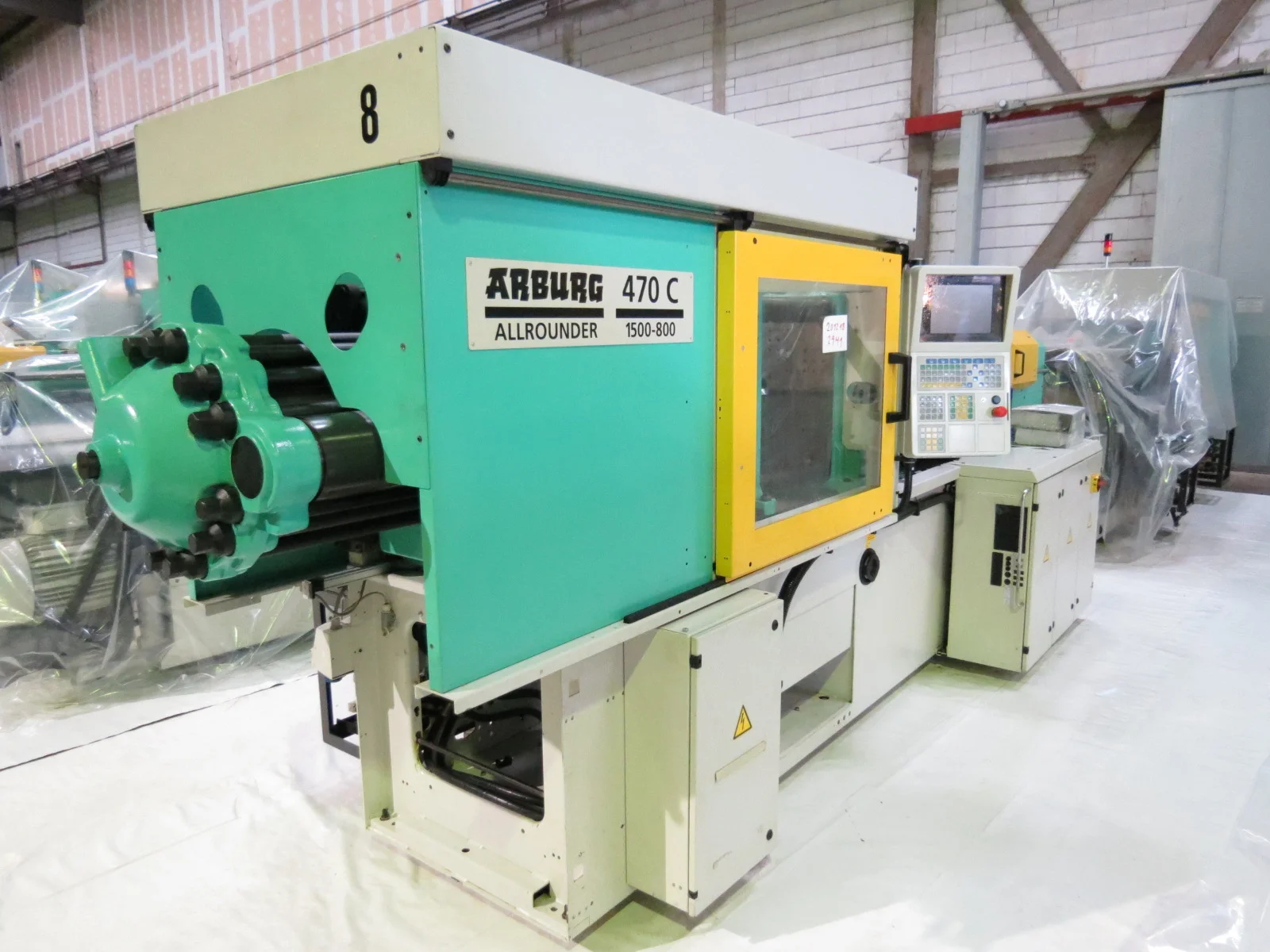

archivedARBURG A 470 C 1500-800 SELOGICA (Accu)
Art.-Nr.: 3505 · €34,500.00
Manufacturer: ARBURG A 470 C 1500-800 SELOGICA (Accu)
Machine number: 202662
Manufacture year: 2006
Operating hours: 42,000 Stunden
Screw: Hoch Verschl.Fest 55 mm
Injection pressure: 1650 bar
Stroke volume: 474 cm³
Clamping Force: 150 t
Tie bar distance: 470 x 470 mm
Mould installation height min.: 250 mm
Plate distance max.: 750 mm
Dimensions: 5200 x 1750 x 2000 mm
Eeight: 5550 kg
Connected load: 37 + 21,9 = 58,9 kW

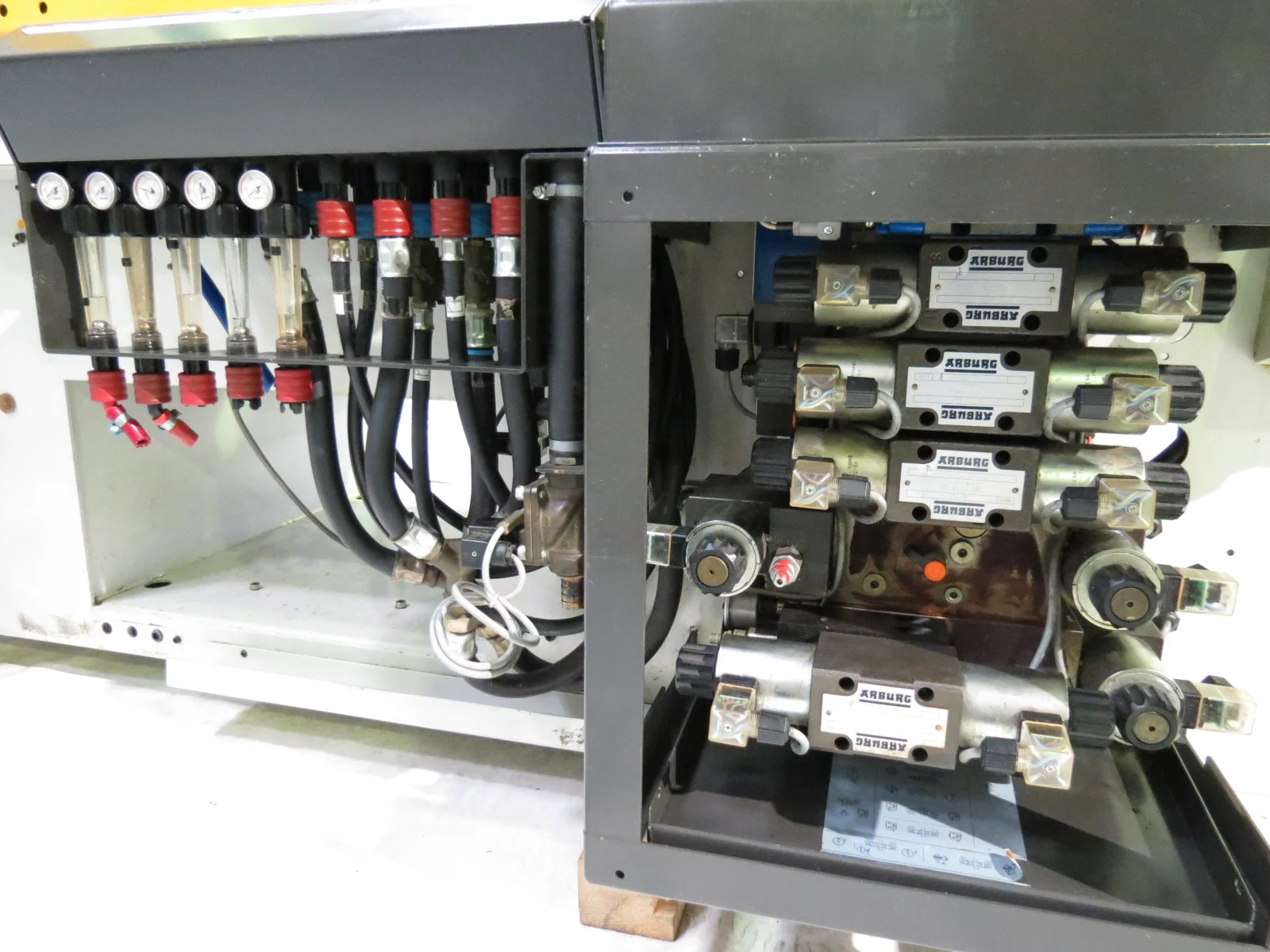

Hydrospeicher (Akkumulator), Kernzug 1 Fach, WKZ Heizung 21 fach, Neu abgedichtet in 2017...
