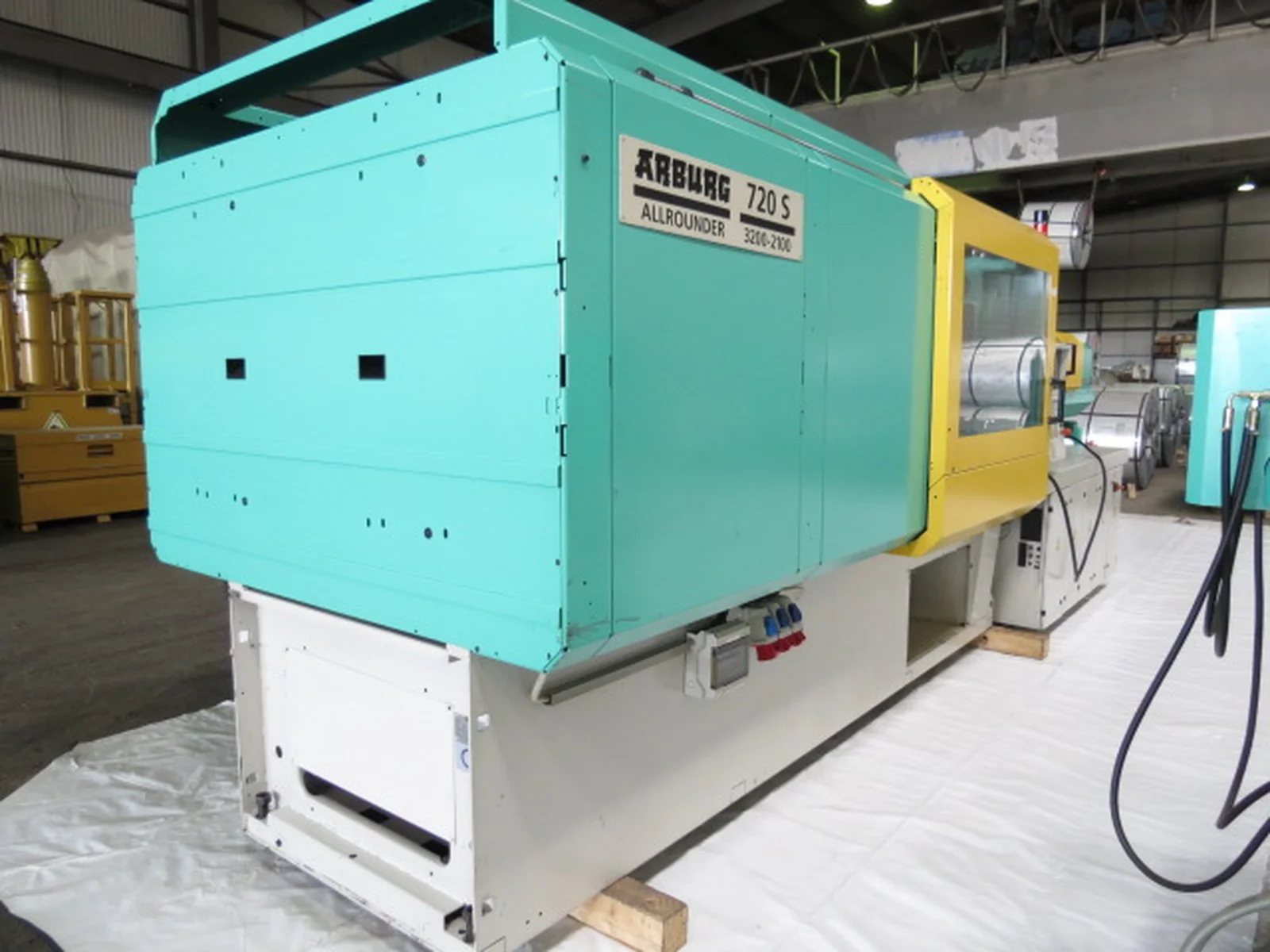

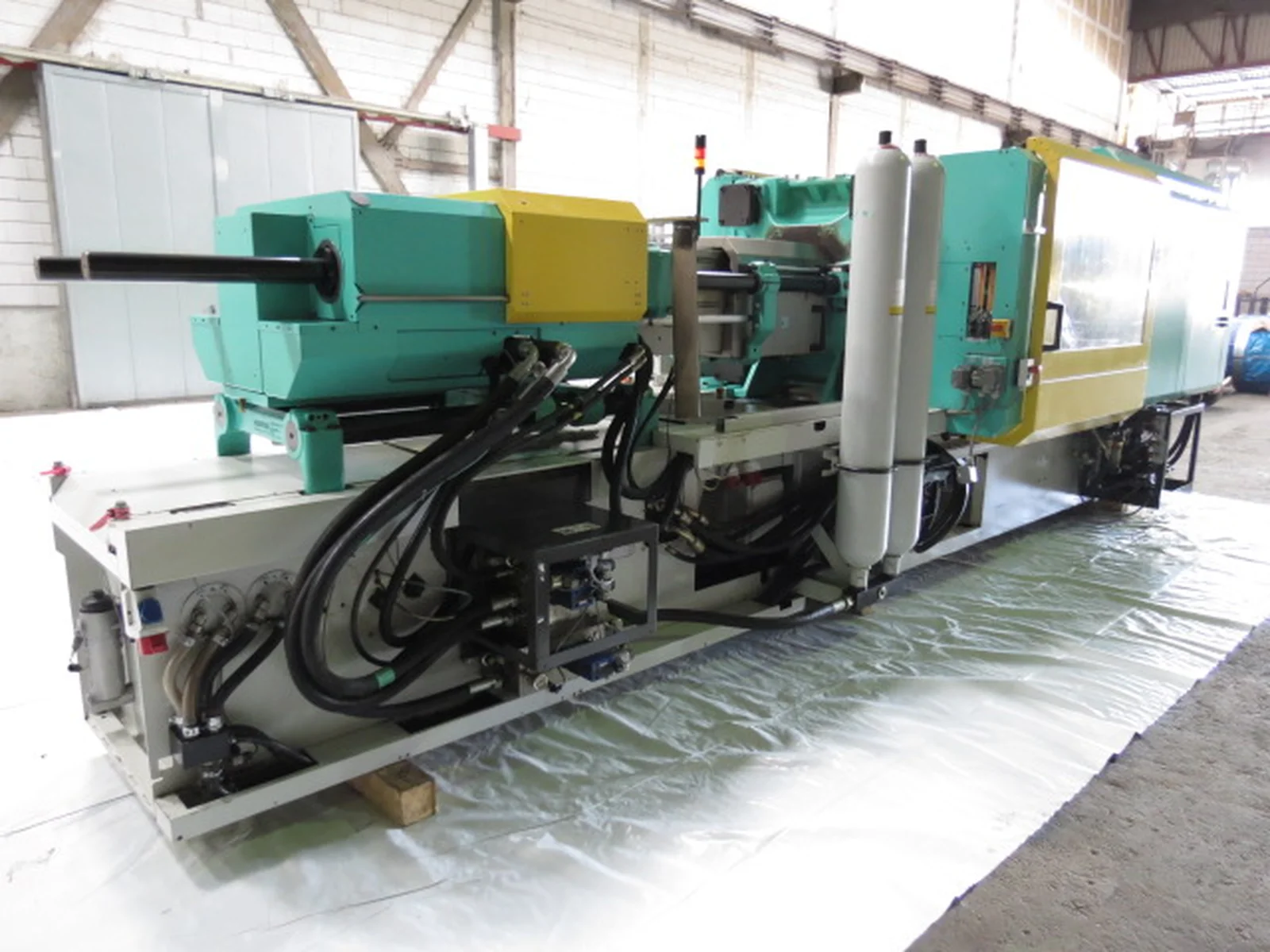

archivedARBURG A 720 S 3200-2100
Art.-Nr.: 3607 · €69,500.00
Manufacturer: ARBURG A 720 S 3200-2100
Machine number: 204399
Manufacture year: 2007
Operating hours: 55,500 Stunden
Screw: Hoch.Verschl.Fest 70 mm
Injection pressure: 2000 bar
Stroke volume: 1078 cm³
Clamping Force: 320 t
Tie bar distance: 720 x 720 mm
Mould installation height min.: 300 mm
Plate distance max.: 1400 mm
Dimensions: 7300 x 2000 x 2500 mm
Eeight: 19500 kg
Connected load: 75 + 31,4 = 106,4 kW
Kernzug 2-fach, WKZ-Heizung 6-fach, Schnittstelle Robot EM67, Hydrospeicher etc...
