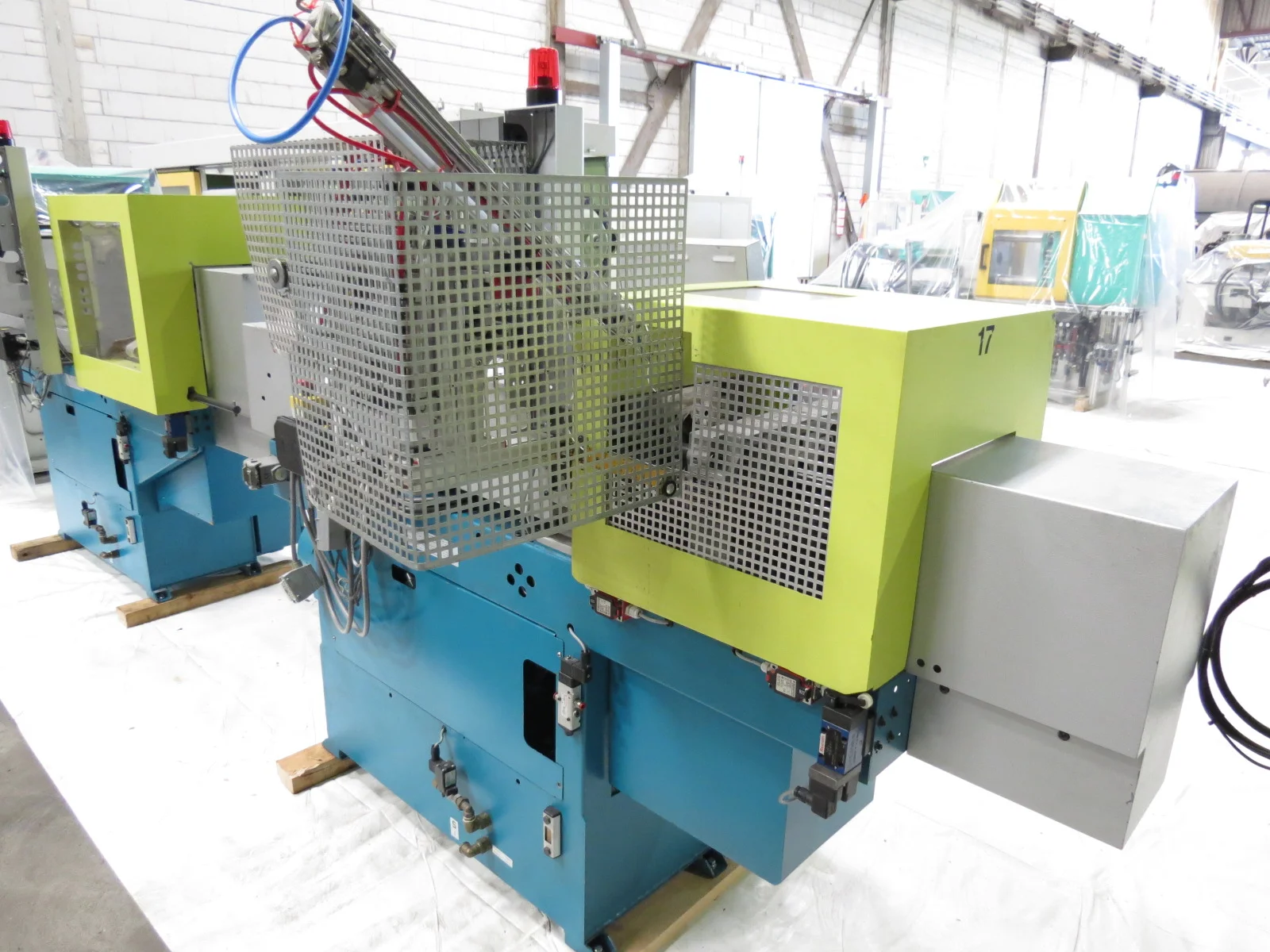

archivedDR.BOY 22 A PROCAN CT (220-52)
Art.-Nr.: 3447 · €12,900.00
Manufacturer: DR.BOY 22 A PROCAN CT (220-52)
Machine number: 39525
Manufacture year: 2008

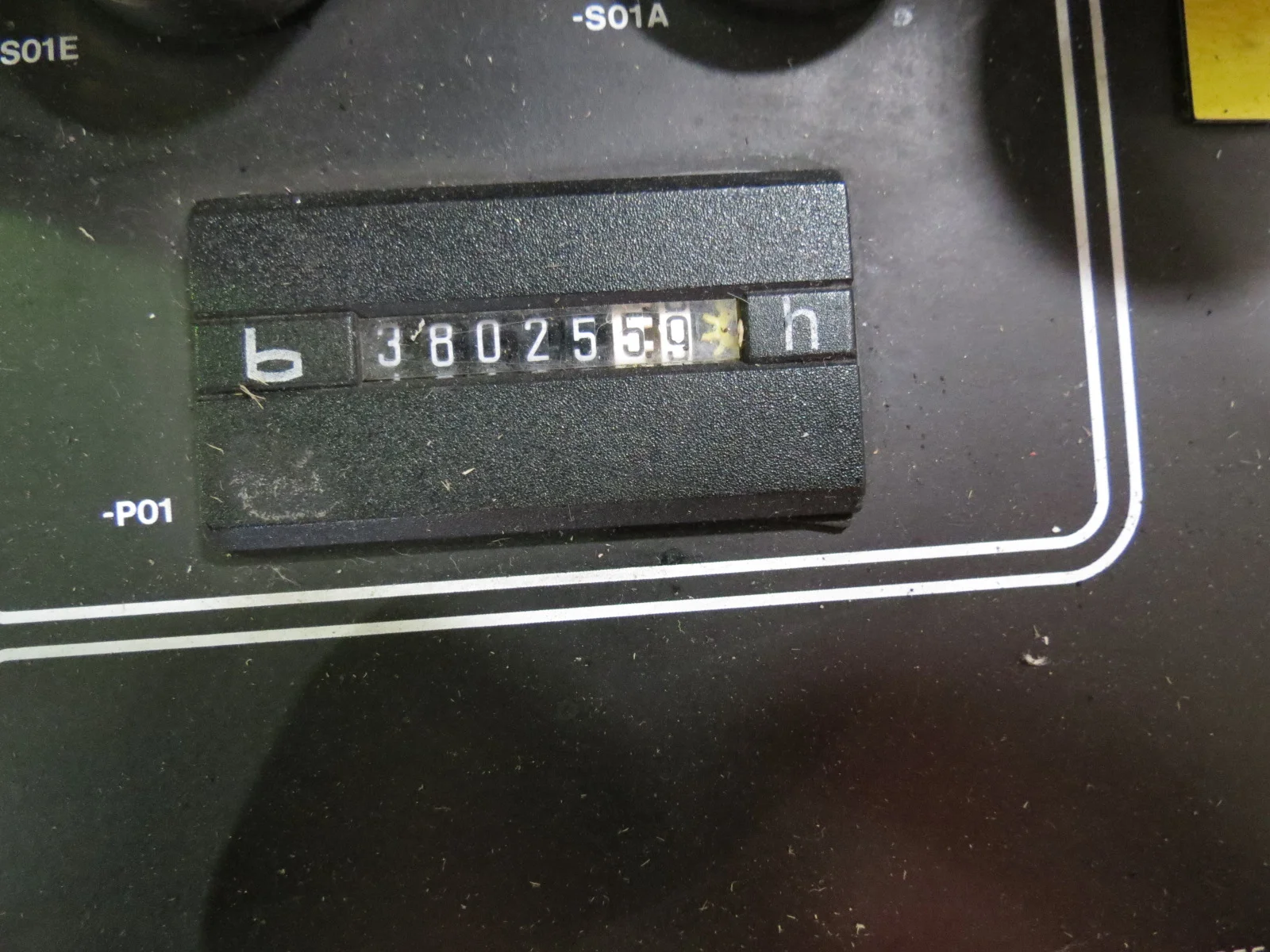

Operating hours: 38,025 Stunden
Screw: 24 mm
Injection pressure: 1455 bar
Stroke volume: 36 cm³
Clamping Force: 22 t
Tie bar distance: 254 mm
Mould installation height min.: 200 mm
Plate distance max.: 400 mm
Dimensions: 2300 x 1300 x 1800 mm
Eeight: 820 kg
Angusspicker, Ausblasvorrichtung, SA Relaisausgang Dosieren, Schnittstelle HHG, Schnittstelle Auswerferplattensicherung etc...
