archivedDR.BOY 22 S DIPRONIC (220 H-52)
Art.-Nr.: 3449 · €3,500.00
Manufacturer: DR.BOY 22 S DIPRONIC (220 H-52)
Machine number: 18450
Manufacture year: 1987

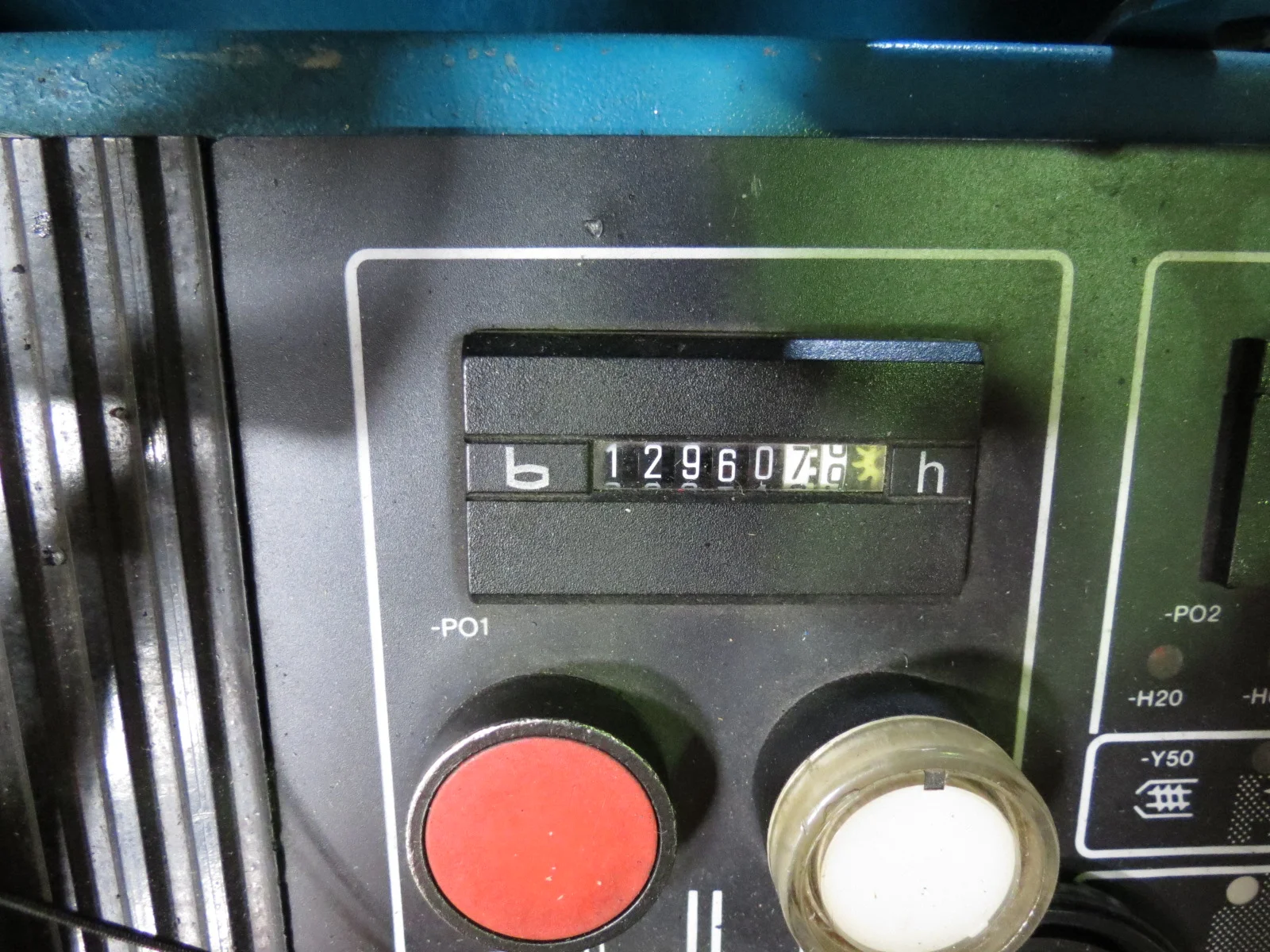

Operating hours: 12,960 Stunden
Screw: 18 mm
Injection pressure: 2587 bar
Stroke volume: 20 cm³
Clamping Force: 22 t
Tie bar distance: 254 mm
Mould installation height min.: 200 mm
Plate distance max.: 400 mm
Dimensions: 2600 x 800 x 1600 mm
Eeight: 800 kg
Connected load: 5,5 + 3 = 8,5 kW
Komplett überholt von BELLCO in 2011
Ausblasvorrichtung
