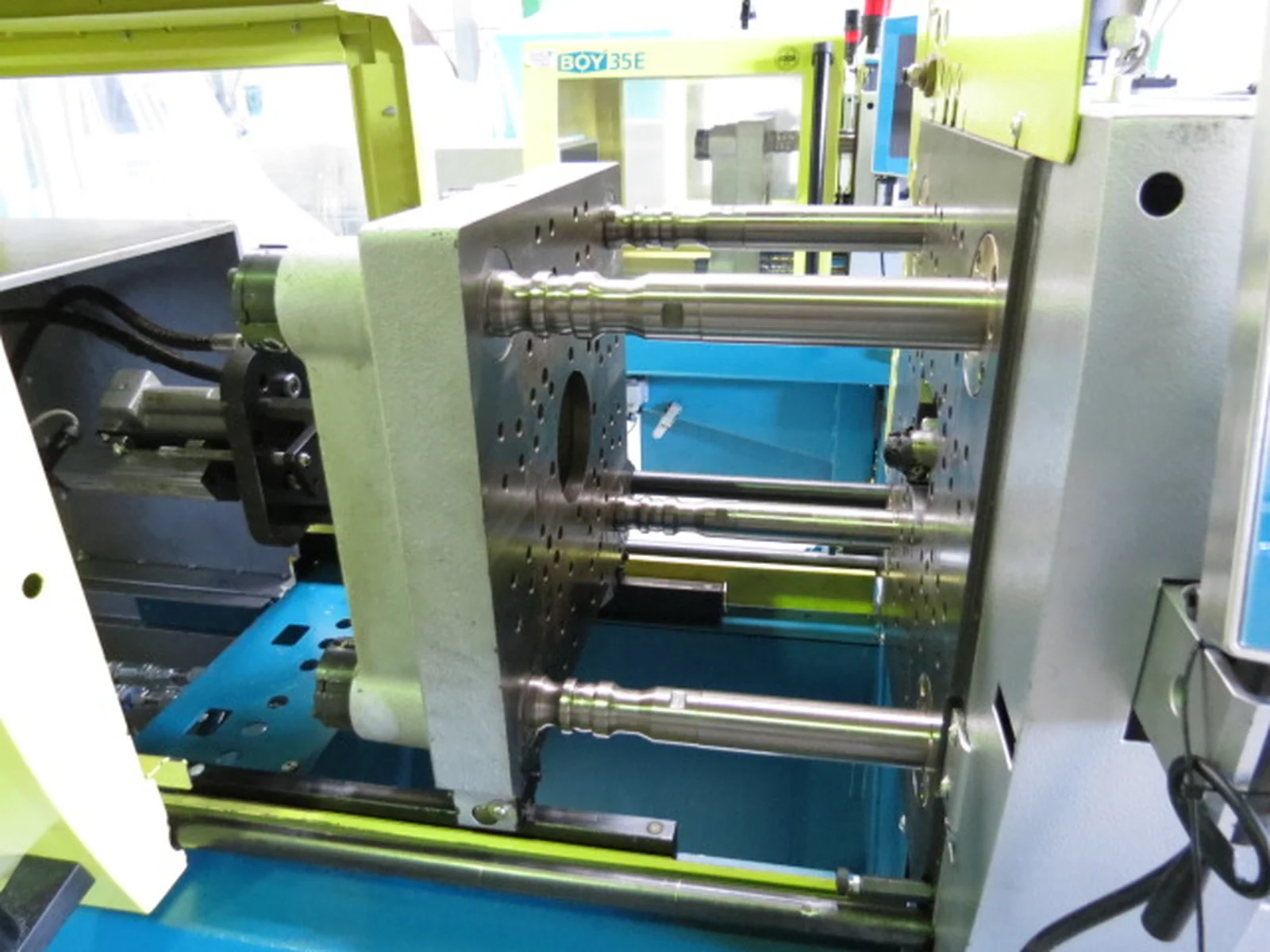

archivedDR.BOY 35 E Procan ALPHA 2 (64481)
Art.-Nr.: 3618 · €17,500.00
Manufacturer: DR.BOY 35 E Procan ALPHA 2 (64481)
Machine number: 64481
Manufacture year: 2015
Operating hours: 22,000 Stunden
Screw: 28 mm
Injection pressure: 1577 bar
Stroke volume: 58 cm³
Clamping Force: 35 t
Tie bar distance: 280 x 254 mm
Mould installation height min.: 200 mm
Plate distance max.: 500 mm
Dimensions: 2400 x 850 x 1950 mm
Eeight: 1310 kg
Connected load: pump 7,4 total 13,2 kW
DR.BOY 35 E (350-92), Roboter Schnittstelle EM12, Kernzug, Luftventil
